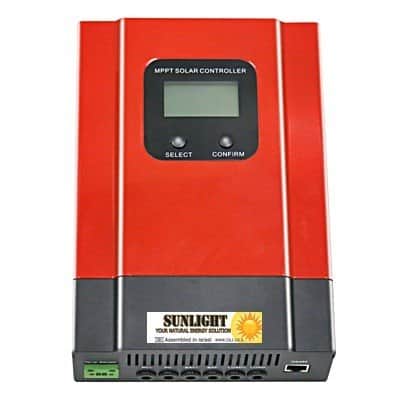

בקר סולארי 40A MPPT חכם יציאה לתקשורת
eSMART2 12/24/36/48V auto 20A-40A RS485 mppt solar controller
|
ME-eSmart3-12V/24V/36V/48V-series |
20A |
30A |
40A |
50A |
60A | ||||
|
Charge Mode |
MPPT(Maximum Power Point Tracking) |
||||||||
|
MPPT efficiency |
≥99.5% |
||||||||
|
System Type |
DC12V/24V/36V/48V |
Automatic recognition |
|||||||
|
Input Characteristic |
|||||||||
|
PV Max. Input voltage (VOC) |
12V/24V/36V/48V system |
DC130V |
|||||||
|
Start charging voltage point |
12V/24V/36V/48V system |
Higher than battery voltage 3V |
|||||||
|
Low input voltage protection point |
12V/24V/36V/48V system |
Higher than current battery voltage 1V |
|||||||
|
Over voltage protection point |
12V/24V/36V/48V system |
DC120V |
|||||||
|
Rated PV input power
|
12V system |
260W |
390W |
520W |
620W |
780W | |||
|
24V system |
520W |
780W |
1040W |
1300W |
1560W | ||||
|
36V system |
780W |
1170W |
1560W |
1950W |
2340W | ||||
|
48V system |
1040W |
1560W |
2080W |
2600W |
3120W | ||||
|
Charge Characteristic |
|||||||||
|
Charge mode |
MPPT(Maximum Power Point Tracking) |
||||||||
|
Charge method |
3-Stage: constant current(fast charging), constant voltage, floating charge |
||||||||
|
Selectable Battery Types |
Flooded, Sealed lead acid, Gel battery (Other types of the batteries also can be defined) |
||||||||
|
Rated charge current |
20A |
30A |
40A |
50A |
60A | ||||
|
Load Discharge Characteristic |
|||||||||
|
Load voltage |
Based on battery voltage |
||||||||
|
Load rated current |
20A |
30A |
40A |
50A |
60A | ||||
|
Load control mode |
Time control mode, PV&Time control mode, On mode, Off mode, PV voltage control mode |
||||||||
|
Display/Communication |
|||||||||
|
LCD display/ RS485 to USB(PC software optional), Meter, WiFi modular(APP) |
System type, PV type, PV voltage, Charge voltage, charge current, charge power, temperature etc. |
||||||||
|
Other Parameters |
|||||||||
|
Protection |
Yes |
||||||||
|
Thermal methods |
fan cooling |
||||||||
|
Products Size DxWxH(mm) |
240*168*66 |
||||||||
|
Packing Size DxWxH(mm) |
289*204*101 |
||||||||
|
Net Weight (kg) |
2.3 |
||||||||
|
Gross Weight (kg) |
3 |
||||||||
|
Type of Mechanical Protection |
IP25 |
||||||||
