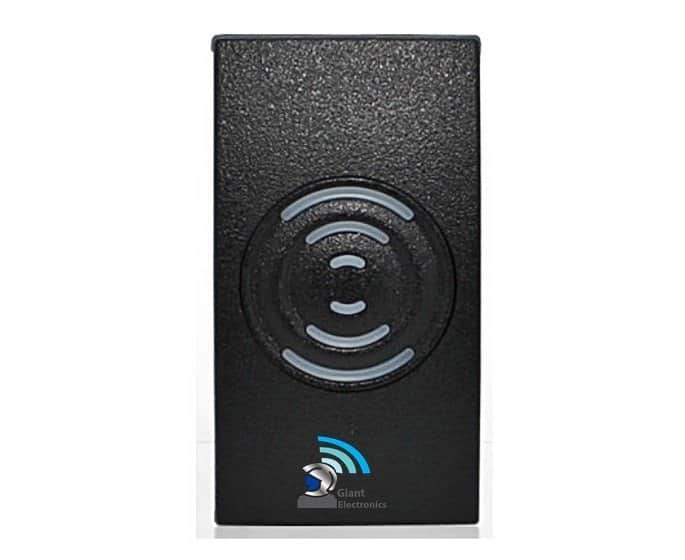

קורא כרטיסי קירבה GIANT989
Features:
．125KHz Proximity /13.56MHz mifare Card Reader
．Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
．26/34bit Wiegand (default)
．Easy to install on Metal Door Frame or Mullion
．External LED Control
．External Buzzer Control
．Indoor / Outdoor Operation
．Solid Epoxy Potted
．Waterproof IP65
．Reverse Polarity Protection
Specifications:
|
|
|
|
Read Range |
KR101EM: Up to 10CM, KR101MF:Up to 5CM |
|
Reading Time (Card) |
≤300ms |
|
Power / Current |
DC 6-14V / Max.70mA |
|
Input Port |
2ea (External LED Control, External Buzzer Control) |
|
Output Format |
26bit/34bit Wiegand (default) |
|
LED Indicator |
2 Color LED Indicators(Red and Green) |
|
Beeper |
Yes |
|
Operating Temperature |
-20° to +65°C |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Color |
Black |
|
Material |
ABS+PC with texture |
|
Dimension(W x H x T)mm |
43 X 77 X 17mm |
|
Weight |
50g |
|
Index of Protection |
IP65 |
