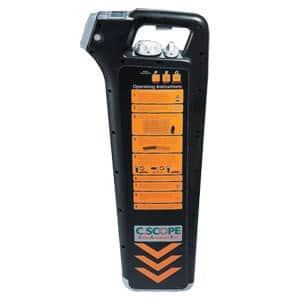

גלאי צנרת וכבלים בקרקע

Controls

On/off control. Press for 'on', release for  'off'. Battery check tone at switch on.

3 position function select switch:

P - Power Mode

for detecting live imbalanced cables.

R - Radio Mode

for detecting re-radiated radio signals.

G - Generator Mode

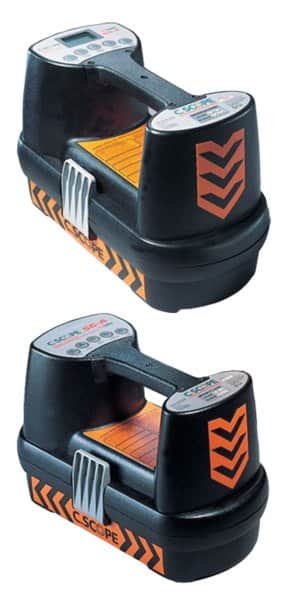

for detecting conductors carrying the signal generated by the C.Scope Signal Generator or from the Sonde Transmitter.

Sensitivity Control.

Display

Large, easy to read liquid crystal display. Shock resistant, mounted behind poly- carbonate lens for maximum protection.

The display indicates:

Signal strength.

Battery condition.

Confirmation of selected mode.

Frequency

P - 50-400 Hz   R - 15-20 kHz   G - 33 kHz

Depth of detection

The Cable Avoidance Tool will typically detect at the following depths:

P - 3 metres   R - 2 metres   G - 3 metres

Batteries

8 x AA (IEC type LR6)

Typical life - 40 hours

Weight

3.0 kgs (including batteries)

Moisture/dust resistant to IP65
