SC12000LBS (12/24V) 12000 lbs

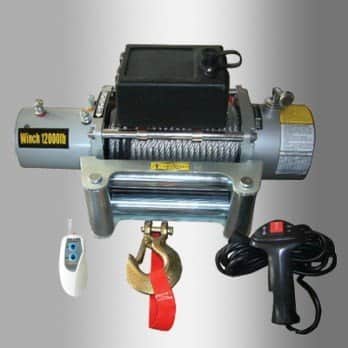

Heavy Duty Electric Winch 12000 LBS
Heavy Duty Electric Winch 12000 LBS
FEATURES AND SPECIFICATIONS
| Rated Line Pull | 12000LBS (5443kgs) single line |
|---|---|
| Motor | 12V 5.5hp/4.0kw 24V 5.98hp/4.46kw Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Diameter 2.52"(64mm)Length 8.82"(224mm) |
| Cable | 94ft of 3/8"dianeter (28m of 9.4mm diameter) |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Dark gray powder coat |
| Overall Dimensions | 21.1"×6.3"×9.5"(537mm×160mm×280mm) |
| Mounting Bolt Pattern | 254mm×114.3mm |
| Weight | N.W.37.5kg G.W.39.5kg |
| Packing Size | 57×19×34.5cm 1PC/CTN |
